Providing richer A/V environment with 4K 60Hz DisplayPort video and multi-channel audio.
Enabling USB device connectivity from remote or virtualized hosts.
Built-in 3.5mm phone jack/ SPDIF to connect an external audio speaker.
DP02U-4K6G is a DisplayPort KVM extender powered by HDBaseT 3.0 technology. Featuring the advanced Valens Stello VS3000 chipset, it is the premier solution for distributing uncompressed, zero-latency video over long distances. It transmits top-tier 4K60Hz resolution and bi-directional RS232 signals up to 100m over a single cable. Unique to this model is independent, bi-directional 3.5mm analog audio I/O alongside DisplayPort audio pass-through, adding flexibility for remote communication and AV workflows. The receiver unit includes 4 built-in USB ports to seamlessly connect multiple peripherals such as keyboards, mice, and flash drives for high-performance workstations. It serves as an ideal and reliable solution for extending high-definition video from a PC or laptop to a remote monitor or touch panel.
Since its introduction, DisplayPort has quickly become the most widely used audiovisual interface apart from HDMI. In addition to being royalty-free, DisplayPort's audiovisual specifications are even superior to HDMI, attracting users who pursue higher-quality visuals.
Today, the audiovisual market also demands integration for DisplayPort due to its flourishing development. Regarding DisplayPort, which already supports high-quality graphics, HDBaseT transmission is the best choice.
More and more large-scale projects require reliable, high-performance methods to extend their DisplayPort signals. With HDBaseT 3.0 technology, the DP02U-4K6G can integrate multiple signals and, thanks to its exceptionally high transmission bandwidth, extend signals up to 100m using a single network cable. This makes it highly suitable for professional applications such as live esports events, large-scale exhibitions, and more.
DP02U-4K6G supports uncompressed 4K@60Hz video through HDBaseT 3.0 technology, avoiding any loss of image quality and delivering a lifelike, vivid audiovisual experience.
Both the DP02U-4K6G and the HDMI model HE02U-4K6G are built on HDBaseT 3.0 and can be paired for DisplayPort-to-HDMI (or HDMI-to-DisplayPort) extension, allowing you to extend a DisplayPort source to an HDMI display while maintaining USB KVM control.

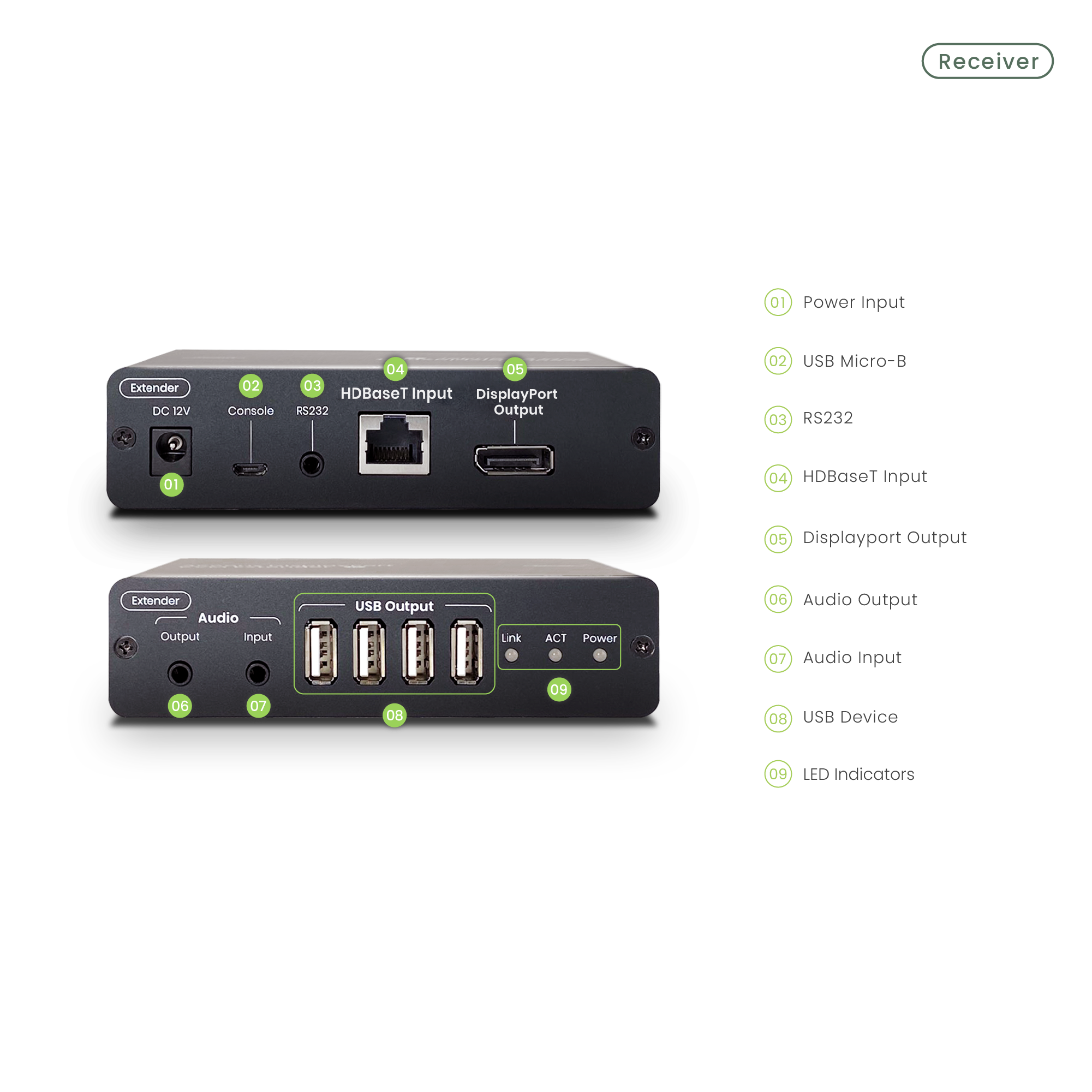

DP02U-4K6G supports 4-port USB 2.0 transmission, allowing you to connect peripherals such as keyboards, mice, webcams, touchscreens, and other computer peripherals. This not only enhances control flexibility but also addresses any device expansion needs.
DP02U-4K6G is equipped with a 3.5mm RS232 jack, enabling the remote transmission of control signals to computers or mechanical devices.

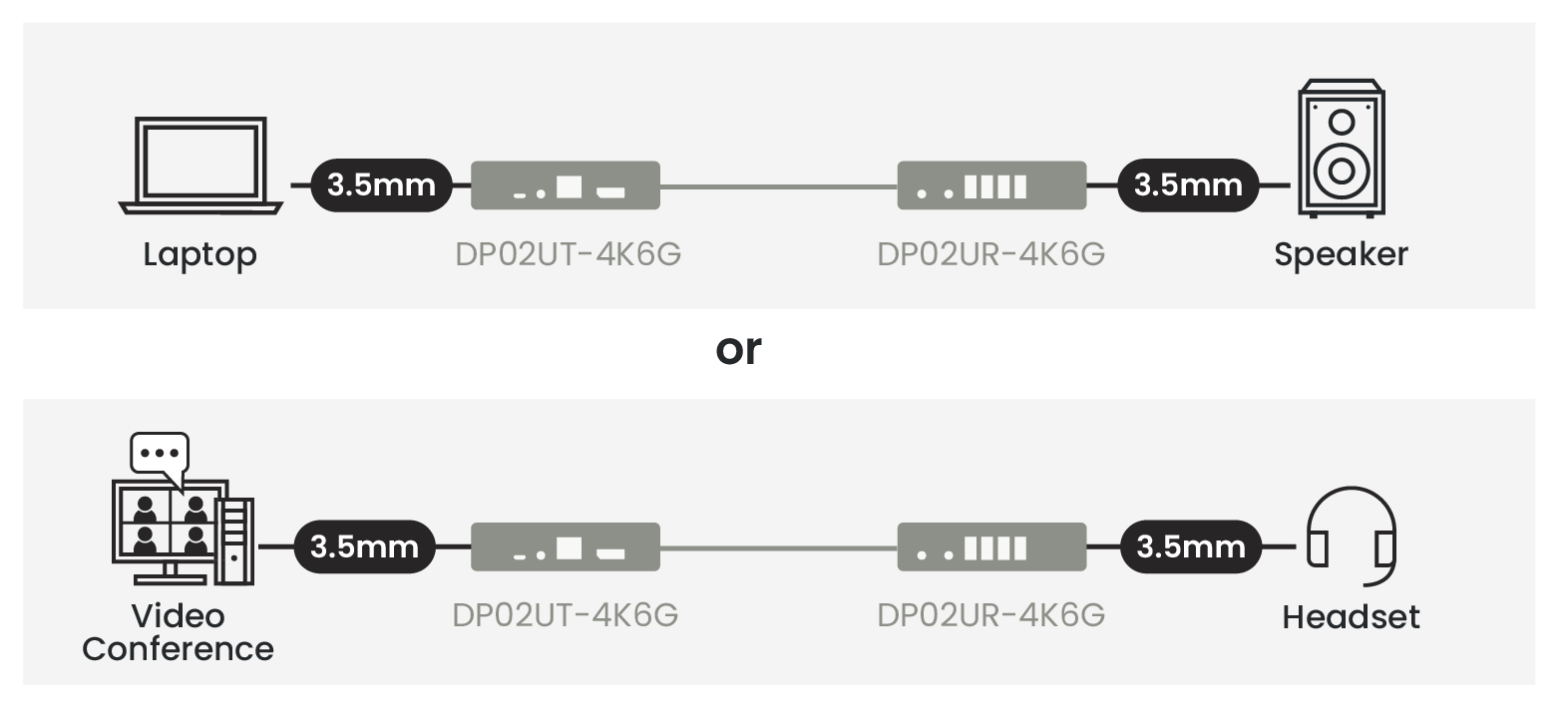

In addition to the built-in audio transmission of DisplayPort itself, the DP02U-4K6G also supports 3.5mm audio input/output to enable users to utilize communication functions remotely. This allows you to connect headphones, speakers, or microphones.
The extension of HDBaseT 3.0 heavily relies on the quality of the cables. Utilizing cables certified by the HDBaseT Alliance is advantageous for achieving the optimal transmission distance of 100 meters. SC&T provides a detailed list of cable models, specifications, and transmission distances in the user manual for integrators to purchase the right cables.
Update Steps:
Release Date
Ver.
Release Note
File Name
Release Date
November 5, 2025
Ver.
V1.0_2510172
Release Date
November 5, 2025
Ver.
V1.0_2510172
Use HDBaseT Alliance–certified CAT6a cable to help ensure stable transmission quality.
Because HDBaseT carries uncompressed, zero-latency video, it can be more susceptible to interference. Please make sure the HDBaseT cable is routed at least 30 cm away from power cables to reduce noise.
HDBaseT extenders are a go-to choice for system integrators, but real-world projects can still bring common installation challenges. We’ve compiled the most frequent issues reported by integrators and created a complete troubleshooting report. Please refer to: HDBaseT Extender Installation & Troubleshooting Guide.
